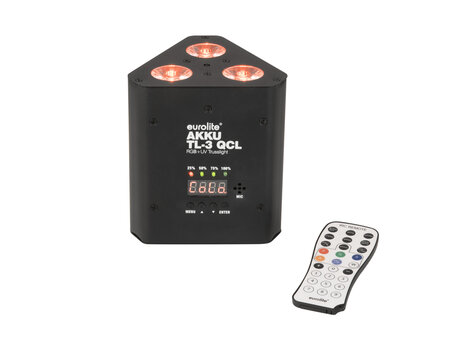

Battery-powered trusslight with RGB+UV LEDs and IR remote control
- Ideal for ALUTRUSS DECOLOCK DQ3 3-point system
- Threaded inserts for suspended installation
- Battery operation up to 8h depending on program used
- 3 powerful LEDs 4 W high-power 4in1 QCL RGB/UV (homogenous color mix)
- Integrated show programs
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 10°
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; white balance; Energy-saving mode
- Strobe effect
- Direct color selection for 20 preset colors
- For application areas such as: Trade fair and shop fitting; Stage
- Silent operation
- Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J
- Mains input and output for power linking up to 8 units
- Cordless, flexible and versatile
- Integrated automatic charging of the battery and status indicator
- Rubber feet
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery
Power supply:
100-240 V AC, 50/60 Hz
IP classification:
IP20
Protection class:
Protection class III
Power connection:
Battery/battery pack built-in
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
IEC connector (F) mounting version
Fuse:
F 1 A Fuse replaceable
Battery pack type:
1 x lithium ion 11,1 V, 2200 mAh, 24,42 Wh
Battery pack:
Battery operation up to 8h depending on program used
Recharging time 2,5h
Lamp type:
LED lamp
LED:
3 x 4 W high-power 4in1 QCL RGB/UV (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
2; 4; 5; 6; 9
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J
Beam angle:
10°
Beam angle (1/2 peak):
10°
Beam angle (1/10 peak):
33°
Housing color:
Black
Transport aid:
Rubber feet
Dimensions:
Width: 12,22 cm
Depth: 10,8 cm
Height: 14,3 cm
Weight:
1,26 kg
Noise classification:
Class 0 (no noise at all); Class 0 (no noise at all)
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
