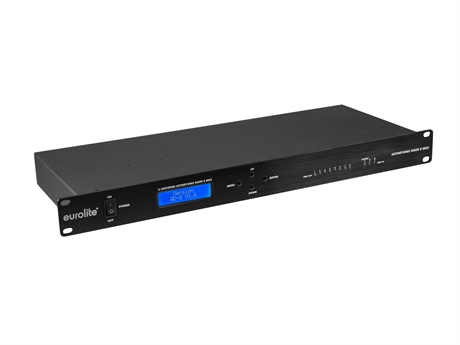

Art-Net interface for output of 8 universes on XLR
- Parallel DMX input possible (1024 channels)
- 8 optically isolated XLR plugs (3-pin) for DMX output
- 2 XLR jacks (3-pin) for DMX input
- Variable data routing capabilities for all DMX outputs
- User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
- LED indication for functions
- Splitter operation possible
- Can transmit up to 4096 DMX channels
- Control via ArtNet
- The device can be connected via RJ-45 (F) mounting version to the PC
- (19") 48.3 cm rack installation
Package contents
- 1 x device, 1 x user manual, 1 x power cord
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
5 W
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
DMX channels:
Output 4096
DMX input:
2 x 3-pin XLR (M) mounting version
DMX output:
8 x 3-pin XLR (F) mounting version
Network connection:
Protocol: ArtNet 3 via 2x RJ-45 (F) mounting version
Control:
ArtNet
Connections:
2 x RJ-45 E-Con (F) mounting version
PC connect:
Via RJ-45 (F) mounting version
Housing design:
(19") 48.3 cm rack installation
Dimensions:
Width: 48,3 cm
Depth: 17,5 cm
Height: 4,45 cm
Weight:
2,40 kg
