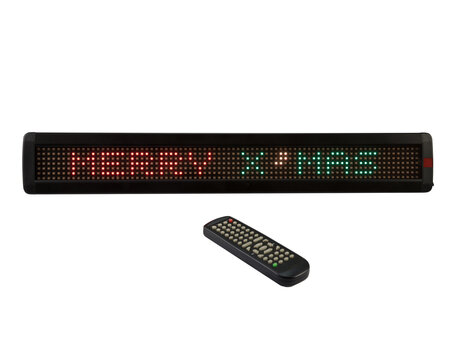

RG moving message display (7x80 pixels) with network connectivity, PC software and IR remote control
- Fully programmable via supplied IR remote control or with PC software via USB port and RJ45 network port
- Dot matrix with 560 super bright SMD LEDs
- Large database with various display effects, symbols and graphics
- 99 editable memory locations
- 8 editable bitmap memory locations, 7 font sizes, 16 color combinations, 8 display speeds, 24 display effects, 30 integrated symbols
- 8 animated messages (Welcome, Merry X'Mas, Happy New Year etc.)
- Programming of sequences
- Timer function
- 560 powerful LEDs SMD 3535 R/G
- The device is cooled by passive convection cooling
- Control via IR remote control; network cable; via USB; wired remote control
- With Mounting bracket
- For application areas such as: Advertisement/Shop window; Trade fair and shop fitting; Wedding/gala/events; Clubs/dancing school; restaurants, bars and hotels
Package contents
- 1 x device, 1 x external mains adapter, 1 x uSB stick, 1 x remote control, 1 x uSB cable, 1 x network cable, 2 x angle
Power supply:
5 V DC
Power consumption:
12 W
IP classification:
IP20
Protection class:
Protection class III
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter included
LED:
560 x SMD 3535 R/G
Network connection:
Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version
Cooling:
Passive convection cooling
Control:
IR remote control; network cable; via USB; wired remote control
Image:
Max. 7x80 px
Presentation:
1-line, 13 visible characters
16 colors
Text:
7 fonts
Housing color:
Black
Attachment system:
2x Mounting bracket
USB port:
USB 2.0, Typ micro USB (F) mounting version
Display:
60,5 cm x 5,5 cm
Dimensions:
Width: 64,7 cm
Depth: 9,7 cm
Height: 3,5 cm
Weight:
1,25 kg
USB cable
Cable length:
Approx. 1,5 m
Plug A:
1 x USB, type A
Plug B:
1 x micro USB (M)
Color:
Black
Network cable
Cable length:
Approx. 1,5 m
Connector type:
RJ-45 (M)
Color:
Black
External mains adapter
Power supply:
100-240 V AC, 50/60 Hz
Pin configuration:
Inside + outside -
IP classification:
IP20
Protection class:
Protection class II
Cable length:
Approx. 1,5 m
Output:
5 V DC; 3 A; 15 W
Color:
Black
Remote control
Battery:
2 x Micro (AAA) included
Angle
Diameter mounting holes:
1 x Ø8mm; 1 x Ø6mm
Material:
Metal, 1,4 mm
Color:
Black
