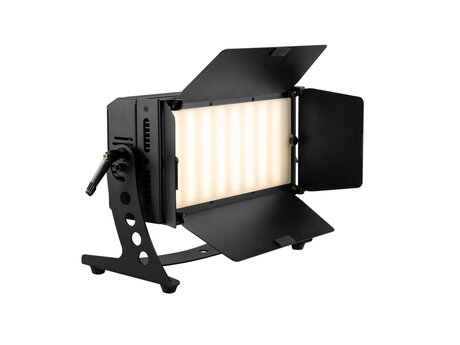

DMX-controlled surface light with 384 dual white LEDs, QuickDMX port, diffuser and barn doors
- 192 powerful LEDs 0,5 W SMD 5730 cold white (CW)
- 192 powerful LEDs 0,5 W SMD 5730 warm white (WW)
- Energy-saving, durable and environmentally friendly
- Additional frost filter provides a wide, soft and homogeneous light
- 4 barn doors to avoid blinding the audience and for protection during transport
- Variable color temperature 2700 K - 5700 K
- Very quiet working noise
- Direct color temperature selection for 69 preset values
- Dimmer electronic
- The device is cooled by temperature-controlled fan
- Control via Quick select potentiometer for brightness and color temperature; DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
- Flicker-free
- With a beam angle of 120°
- Very high color rendering index (CRI)
- With Mounting bracket
- LCD display
- For application areas such as: Video and photography; Stage
- Preprogrammed in Light Captain
- Rubber feet
- Mains input and output for power linking up to 8 units
Package contents
- 1 x spotlight, 1 x power cord, 1 x diffusor cover, 2 x knurled screw, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
100 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
P-Con (gray), mounting version
Fuse:
T 3,15 A Fuse fix on board
Lamp type:
LED lamp
LED:
192 x 0,5 W SMD 5730 cold white (CW)
192 x 0,5 W SMD 5730 warm white (WW)
Color temperature:
2700K - 5700K adjustable
Flash rate:
1 - 20 Hz
DMX channels:
2-1; 2-2; 3-1; 3-2; 4
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
Quick select potentiometer for brightness and color temperature; DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in:
Light Captain
Beam angle:
120°
Beam angle (1/2 peak):
120°
Color rendering index (CRI):
94 Ra
Illuminance in Lux (lx):
Wide cold white (CW) 1m: 2324 lx, 3m: 276 lx, 6m: 83 lx
Wide warm white (WW) 1m: 2277 lx, 3m: 249 lx, 6m: 76 lx
Wide all 1m: 3530 lx, 3m: 407 lx, 6m: 124 lx
Narrow cold white (CW) 1m: 2789 lx, 3m: 327 lx, 6m: 98 lx
Narrow warm white (WW) 1m: 2542 lx, 3m: 297 lx, 6m: 94 lx
Narrow all 1m: 4167 lx, 3m: 508 lx, 6m: 150 lx
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
LCD display
Transport aid:
Rubber feet
Material:
Metal
Dimensions:
Length: 34,7 cm
Width: 13,8 cm
Height: 21,1 cm
Weight:
3,52 kg
Noise classification:
Class 1 (very slight noise, suitable for noise-sensitive environments)
Power cord
Cable construction:
3 x 1,0 mm² H05VV-F
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
1 x Ø11mm; 2 x Ø8mm; 8 x Ø15mm
Material:
Metal, 2 mm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
