Approved safety bond
- Rope with thimble and connector

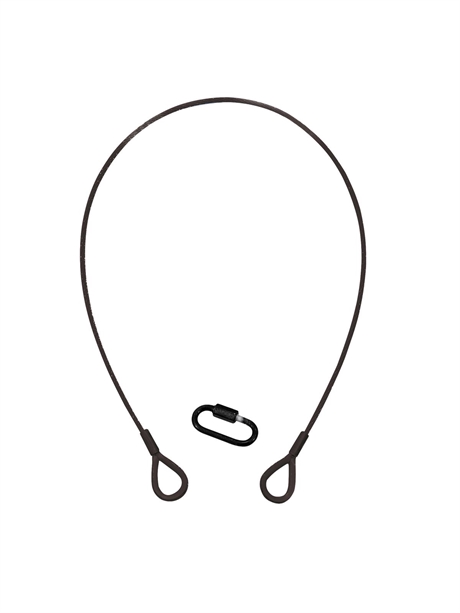

EUROLITE Steel Rope (SC) 600x3mm black with thimbles
Installation rope, safety bond, safety
- Round strand rope 6 x 19 with fibre core
- With two thimbles
- Suitable for installing and securing loads above persons
- Complies with DIN EN 12385-4:2008-06 and DIN 56927:2009-03
- Rope with thimble
EUROLITE Quick Link Typ A-50 black
Quick link
- Complies with DIN 56927:2009-03
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
Secured weight (BGV C1):
Max. 5 kg
Strength classification:
1770
Temperature range:
-40° C - +100° C
Weight:
60 g
EUROLITE Steel Rope (SC) 600x3mm black with thimbles
Maximum load WLL (5-fold):
100 kg
Design of the core:
6 x 19 WSC
Standard:
DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strenght of rope:
1770 N/mm²
Wire surface:
Zinc-plated
Color:
Black
Temperature range:
-40° C - +100° C
Dimensions:
Length: 60 cm
Diameter: Ø 3 mm
Weight:
50 g
Length weigth:
0,0311 kg/m
EUROLITE Quick Link Typ A-50 black
Maximum load WLL (10-fold):
50 kg
Standard:
DIN 56927:2009-03,
Shape:
A - small opening
Material:
Steel, zinc-plated
Opening:
0-5,5 mm
Dimensions:
Length: 2,90 cm
Width: 3,50 cm
Depth: 1,90 cm
Diameter: Ø 3 mm
Weight:
10 g
