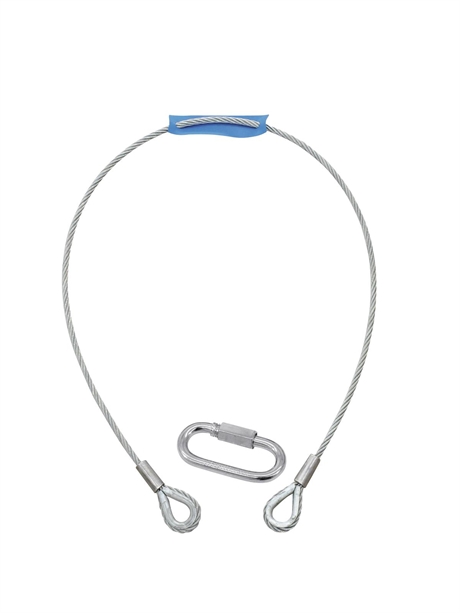

- Rope with thimble and connector
EUROLITE Steel Rope 1000x6mm silver with Thimble
Installation rope, safety bond, safety
- Round strand rope 6 x 19 with fibre core
- With two thimbles
- Suitable for installing and securing loads above persons
- Complies with DIN EN 12385-4:2008-06 and DIN 56927:2009-03
- Rope with thimble
- For further information about this product, please refer to the Data Sheet under "Downloads"
EUROLITE Quick Link Type B-200
Quick link
- Complies with DIN 56927:2009-03
- For further information about this product, please refer to the Data Sheet under "Downloads"
Secured weight (BGV C1):
Max. 35 kg
Temperature range:
-40° C - +100° C
Weight:
220 g
EUROLITE Steel Rope 1000x6mm silver with Thimble
Maximum load WLL (5-fold):
400 kg
Design of the core:
6 x 19 FC
Strength classification:
1960
Standard:
DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strenght of rope:
1770 N/mm²
Wire surface:
Zinc-plated
Color:
Silver
Temperature range:
-40° C - +100° C
Dimensions:
Length: 1 m
Diameter: Ø 6 mm
Weight:
190 g
Length weigth:
0,0554 kg/m
EUROLITE Quick Link Type B-200
Maximum load WLL (10-fold):
200 kg
Standard:
DIN 56927:2009-03,
Shape:
B - big opening
Material:
Steel, zinc-plated
Opening:
0-14,5 mm
Dimensions:
Length: 5,80 cm
Width: 7,30 cm
Depth: 3 cm
Diameter: Ø 6 mm
Weight:
30 g
