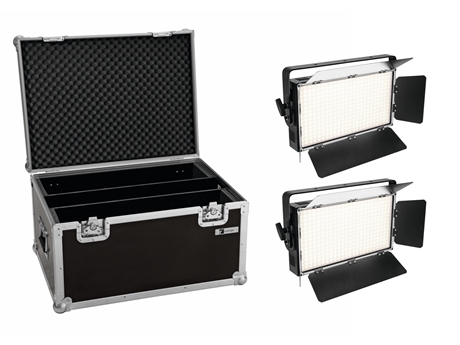

2x surface light with 360 warm white LEDs and DMX including PRO flightcase
EUROLITE LED PLL-360 3200K Panel
Surface light with 360 warm white LEDs and DMX
- 360 powerful LEDs 0,5 W SMD 2835 warm white (WW)
- Energy-saving, durable and environmentally friendly
- Frost filter provides a soft, homogeneous light
- 4 barn doors to avoid blinding the audience and for protection during transport
- Silent operation
- Dimmer electronic; Dimmer speed (step response) adjustable
- Strobe effect
- The device is cooled by passive convection cooling
- Control via Quick select potentiometer for brightness; DMX; Master/slave function
- Flicker-free
- With a beam angle of 120°
- Very high color rendering index (CRI)
- With Mounting bracket
- LCD display
- Slim, rugged metal housing
- For application areas such as: Video and photography; Stage
- Preprogrammed in Light´J; Light Captain
- Various versions available
- Dimmable
- Mains input and output for power linking up to 8 units
- Rugged carrying handle
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord
ROADINGER Flightcase 2x LED PLL-360
Trunk case, PRO version
- With accessory compartment
- With 2 Device compartments
- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
- Interior with foam padding
- Aluminum profile frames 25mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
Weight:
23,00 kg
EUROLITE LED PLL-360 3200K Panel
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
130 W
IP classification:
IP20
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
IEC connector (F) mounting version
Lamp type:
LED lamp
Lamp specification:
Dimmable
LED:
360 x 0,5 W SMD 2835 warm white (WW)
Color temperature:
3200K
DMX channels:
3
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Quick select potentiometer for brightness; DMX; Master/slave function
Preprogrammed in:
Light´J; Light Captain
Beam angle:
120°
Beam angle (1/2 peak):
120°
Color rendering index (CRI):
94 Ra
Illuminance in Lux (lx):
Warm white (WW) 3m: 403 lx, 6m: 118 lx
Luminous flux:
9367 lm
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
LCD display
Carrying handle:
1 pc/pcs
Dimensions:
Width: 57 cm
Depth: 12 cm
Height: 31 cm
Weight:
6,10 kg
Noise classification:
Class 0 (no noise at all)
Energy efficiency class (A - G):
F
ROADINGER Flightcase 2x LED PLL-360
Maximum load:
50 kg
Aluminum profile frames:
25 mm
Case handle:
2 pc/pcs
Stop hinge:
2 pc/pcs
Lock:
Butterfly lock: 2 pc/pcs
Use of brands:
Branded hardware
Material:
Birch multiplex, 7 mm; birch multiplex
Color:
Dark brown, laminated
Accessory compartment:
61 cm x 10,5 cm x 26 cm
Device compartment:
57 cm x 8 cm x 26 cm
Inside dimensions:
61 cm x 26 cm
Dimensions:
Width: 65 cm
Depth: 37 cm
Height: 48 cm
Weight:
10,80 kg
