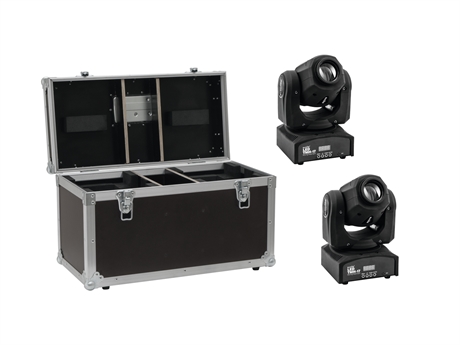

2x handy-size spotlight with 30 W LED, gobos and color wheel including PRO flightcase
- Positioning within PAN and TILT
EUROLITE LED TMH-17 Moving Head Spot
Handy sized spotlight with 30 W LED, gobos and color wheel
- Compact lightweight
- 1 powerful LED 30 W COB (chip-on-board) color wheel
- Positioning within 540° PAN and 200° TILT
- Exact positioning (16 bit resolution)
- Gobo wheel with static gobos; Focus manual
- Gobo effect; beam effect; Strobe effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Sound to light via Microphone
- With a beam angle of 12°
- 4 digit 7-segment LED display
- Dimmer electronic
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 2 x screw, 4 x washer, 1 x safety eyelet
ROADINGER Flightcase 2x LED TMH-17
Trunk case, PRO version
- With accessory compartment
- With 2 Device compartments
- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
- Interior with foam padding
- Aluminum profile frames 25mm with rounded edges
- Hinged, chromium plated case handle
- 2 chrome tip-over locks
- 2 high-quality spring locks
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
Weight:
11,50 kg
EUROLITE LED TMH-17 Moving Head Spot
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
50 W
IP classification:
IP20
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:
LED lamp
LED:
1 x 30 W COB (chip-on-board) color wheel
Max. TILT movement:
200° Exact positioning (16 bit resolution)
Max. PAN movement:
540° Exact positioning (16 bit resolution)
Equipment:
Gobo wheel with static gobos; Focus manual
Color generation:
Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with static gobos, 7 gobos and open
DMX channels:
9; 11
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Sound to light via Microphone
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
12°
Beam angle (1/2 peak):
12°
Illuminance in Lux (lx):
Cold white (CW) 3m: 1677 lx, 6m: 417 lx
Housing color:
Black
Display type:
4 digit 7-segment LED display
Dimensions:
Width: 17 cm
Depth: 14,5 cm
Height: 24 cm
Weight:
2,70 kg
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
ROADINGER Flightcase 2x LED TMH-17
Maximum load:
25 kg
Aluminum profile frames:
25 mm
Case handle:
1 pc/pcs
Stop hinge:
2 pc/pcs
Lock:
Spring lock: 2 pc/pcs
Use of brands:
Branded hardware
Material:
Birch multiplex, 7 mm
Color:
Dark brown, laminated
Accessory compartment:
9 cm x 22,5 cm x 22 cm
Compartment dimensions:
19 cm x 22,5 cm x 21,5 cm
Inside dimensions:
22,5 cm x 21,5 cm
Dimensions:
Width: 51,5 cm
Depth: 25,5 cm
Height: 31 cm
Weight:
6,10 kg
