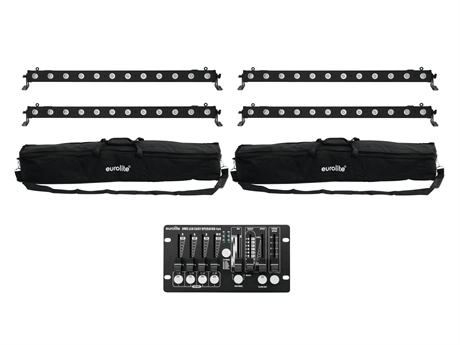

4x Spotlight bar with 12 x 4 W 4in1 LED including soft bag and compact DMX controller
EUROLITE LED BAR-12 QCL RGBW Bar
LED bar (110 cm) with 12 x 4 watt 4in1 LED (RGBW)
- 12 powerful LEDs 4 W high-power 4in1 QCL RGBW (homogenous color mix)
- Color change adjustable; Dimmer electronic; color blend stepless
- Strobe effect
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional)
- Flicker-free
- With a beam angle of 17°
- With Mounting bracket
- 4 digit 7-segment LED display
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; Light´J
- Silent operation
- Mains input and output for power linking up to 8 units
Package contents
- 1 x light effect, 1 x power cord, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual
EUROLITE SB-12 Soft Bag
Practical black soft bag for LED bars (1 m length), adjustable divider
- Ideal for 1 or 2 LED bars with 1 meter length
- Made of easy-care nylon
- With divider
- With 2 Device compartments
- High-quality workmanship with textile , black
- Interior with foam padding
- 2 Rugged carrying handles
- 1 shoulder strap
EUROLITE DMX LED EASY Operator 4x4
Compact DMX controller for 4 LED spotlights with up to 4 colors each
- DMX controller for standard LED spotlights
- Easy handling
- 4 fixtures with RGBW LEDs can be controlled individually or in combination
- DMX channels for red, green, blue, white and master
- Various modes for the DMX channel sequence selectable
- Manual control via 4 faders
- 1 fader for direct RGBW mixing
- Adjustable strobe function
- Blackout function
- 8 integrated show programs
- Can transmit up to 20 DMX channels
- Control via DMX; Sound to light via Microphone; stand-alone
- Desktop console housing
Package contents
- 1 x controller, 1 x external mains adapter, 1 x user manual
Weight:
13,41 kg
EUROLITE LED BAR-12 QCL RGBW Bar
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
24 W
IP classification:
IP20
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
1 x IEC connector (F) mounting version
Lamp type:
LED lamp
LED:
12 x 4 W high-power 4in1 QCL RGBW (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
2; 4; 5; 6; 9
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional)
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; Light´J
Beam angle:
17°
Beam angle (1/2 peak):
17°
Beam angle (1/10 peak):
33°
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Length: 1,085 m
Depth: 6,5 cm
Height: 10 cm
Weight:
2,85 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 0,75 mm² H05RN-F
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
1 x Ø20mm; 1 x Ø11mm; 1 x Ø8mm; 2 x Ø6mm
Material:
Metal
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
EUROLITE SB-12 Soft Bag
Maximum load:
20 kg
Carrying handle:
2 pc/pcs
Transport aid:
1 x shoulder strap
Material:
Textile
Color:
Black
Dimensions:
Width: 1,07 m
Depth: 17 cm
Height: 18 cm
Weight:
570 g
EUROLITE DMX LED EASY Operator 4x4
Power supply:
100-240 V AC, 50/60 Hz
9 V DC 800 mA
Power consumption:
10 W
IP classification:
IP20
Protection class:
Protection class III
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
DMX channels:
Output 20
DMX output:
3-pin XLR (F) mounting version
Control:
DMX; Sound to light via Microphone; stand-alone
Housing color:
Black
Color:
Black
Housing design:
Desktop console housing
Dimensions:
Width: 20 cm
Depth: 11,5 cm
Height: 5,5 cm
Weight:
860 g
