EUROLITE LED TL-3 RGB+UV Trusslight
Variable truss light and uplight with bright 3 x 7 W RGB+UV LED
- Compact and bright
- Perfect for ALUTRUSS 3-POINT SYSTEM DECOLOCK DQ3
- Color change adjustable; Dimmer electronic; color blend stepless
- UV effect; Strobe effect
- 2 integrated show programs
- Direct color selection for 17 preset colors
- Control via IR remote control; stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 16°
- 4 digit 7-segment LED display
- For application areas such as: Trade fair and shop fitting; Stage
- Preprogrammed in LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Rubber feet
- Mains input and output for power linking up to 8 units
- Application possibility: Suspended
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual

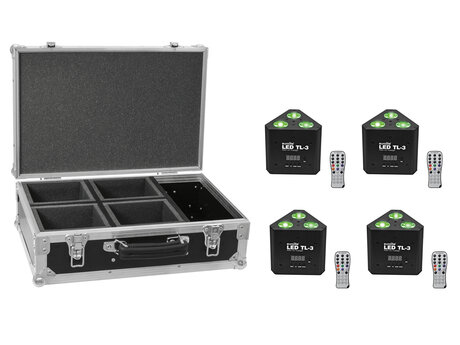

ROADINGER Flightcase 4x TL-3 TCL
PRO flightcase for 4 x TL-3 TCL
- With accessory compartment
- High-quality workmanship with birch multiplex 7 mm, black, laminated
- Interior with foam padding
- Rugged carrying handle
- 2 chrome tip-over locks
- Made in Germany
- For further information about this product, please refer to the Data Sheet under "Downloads"
Weight:
8,36 kg
EUROLITE LED TL-3 RGB+UV Trusslight
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
15 W
IP classification:
IP20
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
1 x IEC connector (F) mounting version
Fuse:
F 1 A Fuse replaceable
Lamp type:
LED lamp
Flash rate:
1 - 20 Hz
DMX channels:
3; 4; 4; 8
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Control:
IR remote control; stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
16°
Beam angle (1/2 peak):
16°
Beam angle (1/10 peak):
33°
Housing color:
Black
Attachment system:
M10 thread
Display type:
4 digit 7-segment LED display
Transport aid:
Rubber feet
Material:
Metal
Dimensions:
Width: 12,2 cm
Depth: 10,8 cm
Height: 11,7 cm
Weight:
890 g
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 0,75 mm² H05VV-F
Cable length:
Approx. 1,1 m
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
ROADINGER Flightcase 4x TL-3 TCL
Maximum load:
25 kg
Carrying handle:
1 pc/pcs
Stop hinge:
2 pc/pcs
Material:
Birch multiplex, 7 mm
Color:
Black, laminated
Compartment dimensions:
12,5 cm x 11,5 cm x 9,5 cm
Accessory compartment:
12,5 cm x 28 cm x 10,5 cm
Inside dimensions:
37,5 cm x 28 cm x 10,5 cm
Dimensions:
Width: 47 cm
Depth: 31 cm
Height: 18 cm
Weight:
4,80 kg
