- Positioning within PAN and TILT
EUROLITE LED TMH-B90 Moving-Head Beam
LED moving head beam with color wheel, static gobo wheel, prism and focus
- 1 powerful LED 90 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN and 200° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold rotating; frost filter
- Beam effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 13 gobos und open
shake effect - Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 3°
- Good color rendering index (CRI)
- LCD display
- Dimmer electronic
- Preprogrammed in Light Captain; EASY SHOW 3; Light´J
- Mains input and output for power linking up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet

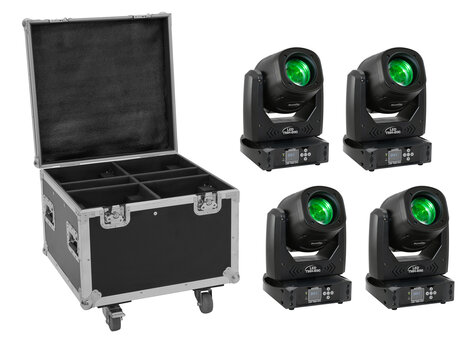

ROADINGER Flightcase 4x TMH-S90/H90/B90
Trunk case with castors
- For optimal security
- With 4 Device compartments
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
cover with foam padding - Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- Castors
Weight:
45,20 kg
EUROLITE LED TMH-B90 Moving-Head Beam
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
125 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Device fuse:
5 x 20 mm, T 2 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 90 W COB (chip-on-board) cold white (CW)
Max. TILT movement:
200° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:
540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:
2 - 20 Hz
Equipment:
Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold rotating; frost filter
Color generation:
Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with static gobos, 13 gobos und open
Shake effect
DMX channels:
14
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light Captain; EASY SHOW 3; Light´J
Beam angle:
3°
Beam angle (1/2 peak):
3°
Color rendering index (CRI):
80 Ra
Illuminance in Lux (lx):
Cold white (CW) 3m: 33839 lx, 6m: 10454 lx
Housing color:
Black
Display type:
LCD display
Dimensions:
Width: 25,5 cm
Depth: 20,5 cm
Height: 33,0 cm
Weight:
6,55 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
ROADINGER Flightcase 4x TMH-S90/H90/B90
Maximum load:
100 kg
Aluminum profile frames:
30 mm
Case handle:
4 pc/pcs
Stop hinge:
2 pc/pcs
Lock:
Butterfly lock: 2 pc/pcs
Transport aid:
Castors
Material:
Plywood multi-layer glued, 7 mm
Color:
Black, laminated
Device compartment:
26 cm x 20 cm x 37 cm
Accessory compartment:
26 cm x 9 cm x 37 cm
Dimensions:
Width: 58 cm
Depth: 57 cm
Height: 54 cm
Weight:
19,00 kg
