EUROLITE LED IP PAR 7x8W QCL spot
Weather-proof (IP65) spotlight with 7 x 8 W LED and 4in1 QCL RGBW color mixing
- 7 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect
- Direct color selection for 25 preset colors
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; IR remote control
- Flicker-free
- With a beam angle of 15°
- With double bracket
- LCD display
- Suitable for outdoor use IP65
- Silent operation
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- With pressure compensation membrane
Package contents
- 1 x device, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual

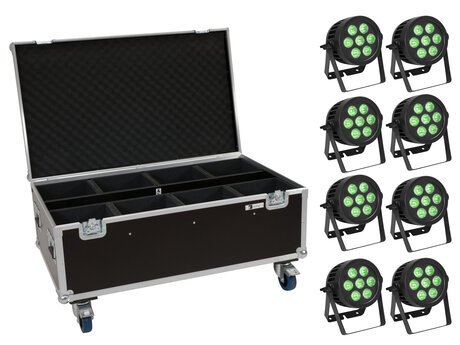

ROADINGER Flightcase 8x LED IP PAR 7x8W QCL/7x9W SCL with wheels
Trunk case with castors, PRO version
- With 8 Device compartments
- With accessory compartment
- High-quality workmanship with birch multiplex 6,50 mm, black, laminated
- Interior with foam padding
- Aluminum profile frames 25mm with rounded edges
- 4 hinged, chromium plated case handles
- 3 chrome tip-over locks
- 2 high-quality butterfly locks
- 4 castors with 2 locking brakes
- 4 built-in stacking trays in the cover
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
Weight:
58,96 kg
EUROLITE LED IP PAR 7x8W QCL spot
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
55 W
IP classification:
IP65
Power connection:
Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Power output:
IP T-Con (F) mounting version
Lamp type:
LED lamp
LED:
7 x 8 W high-power 4in1 QCL RGBW (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
3; 4; 5; 6; 10
DMX input:
1 x 3-pin XLR (M) mounting version IP
DMX output:
1 x 3-pin XLR (F) mounting version IP
Cooling:
Passive convection cooling
Control:
DMX; stand-alone; IR remote control
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
15°
Beam angle (1/2 peak):
15°
Housing color:
Black
Attachment system:
Double bracket
Display type:
LCD display
Material:
Aluminum casting
Dimensions:
Width: 25,5 cm
Depth: 15,3 cm
Height: 28,1 cm
Weight:
4,07 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 1,0 mm² H05RN-F
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
3 x Ø11mm
Material:
Metal, 2,5 mm
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
ROADINGER Flightcase 8x LED IP PAR 7x8W QCL/7x9W SCL with wheels
Maximum load:
100 kg
Aluminum profile frames:
25 mm
Case handle:
4 pc/pcs
Stop hinge:
3 pc/pcs
Lock:
Butterfly lock: 2 pc/pcs
Transport aid:
4 x castors with 2 locking brakes
4 x built-in stacking trays in the cover
Use of brands:
Branded hardware
Material:
Birch multiplex, 6,50 mm, laminated
Color:
Black, laminated
Device compartment:
22,5 cm x 24 cm x 30 cm
Accessory compartment:
1,01 m x 10,5 cm x 28 cm
Dimensions:
Length: 1,05 m
Depth: 63 cm
Height: 51 cm
Weight:
26,40 kg
