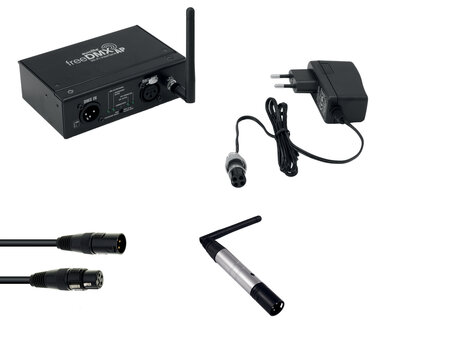

EUROLITE freeDMX AP Wi-Fi Interface
Wireless WLAN DMX interface for apps & programs like Steinigke Light'J
- WLAN DMX interface for wireless lighting control from your tablet or PC
- Receives the control signals via the network and transmits them to the DMX line via cable
- Works with iOS and Android devices
- The apps' online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
- Configuration via integrated webserver
- Access point and infrastructure mode
- 1 DMX feed-through output
- Mounting kits for racks, desks and truss systems available as an option
- Can transmit up to 512 DMX channels
- Control via DMX; Light´J app; W-Lan; Light Captain App
- 2.4 GHz license-free worldwide
- Operating range up to 60m in the open air
- Operating range up to 30m in buildings
- Built with NEUTRIK connector
- In connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
- Made in Germany
Package contents
- 1 x device, 1 x external mains adapter, 4 x foot, 2 x user manual, 1 x antenna, 1 x declaration of conformity
EUROLITE QuickDMX Wireless Transmitter
Compact wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400m
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
EUROLITE DMX cable XLR 3pin 1m bk
High-quality DMX cable
- Adheres to the DMX standard USITT DMX-512/1990/-A
- Very flexible cable
- Electric cable with good shielding
- Robust version
- For building DMX controlled lighting systems, LED spotlights etc.
Weight:
910 g
EUROLITE freeDMX AP Wi-Fi Interface
Power supply:
100-240 V AC, 50/60 Hz
12 V DC 1 A
IP classification:
IP20
WiFi:
Standard: IEEE 802.11 b/g/n
DMX channels:
Output 512
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Control:
DMX; Light´J app; W-Lan; Light Captain App
Status LED:
Signal, pairing, link, chanal source
Frequency band:
2.4 GHz
Antenna gain:
2 dBi
Range:
Range up to 60m in the open air
Range up to 30m in buildings
Use of brands:
Built with NEUTRIK connector
Color:
Black
PC connect:
F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
Dimensions:
Width: 13 cm
Depth: 11,5 cm
Height: 4,1 cm
Weight:
650 g
EUROLITE QuickDMX Wireless Transmitter
Power supply:
100-240 V AC, 50/60 Hz
5 V DC 1 A
IP classification:
IP20
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided)
DMX channels:
Output 512
DMX input:
1 x 3-pin XLR (M)
Control:
QuickDMX; DMX; plug and play
Carrier frequency:
2,4 GHz
Modulation:
GFSK
Parallel mode:
Max. 6 transmitter
Range:
Range up to 400m
Color:
Silver
Dimensions:
Length: 21,2 cm
Diameter: Ø 1,8 cm
Weight:
150 g
EUROLITE DMX cable XLR 3pin 1m bk
Cable length:
1 m
Plug A:
1 x 3-pin XLR (M)
Plug B:
1 x 3-pin XLR (F)
Color:
Black
Weight:
110 g
