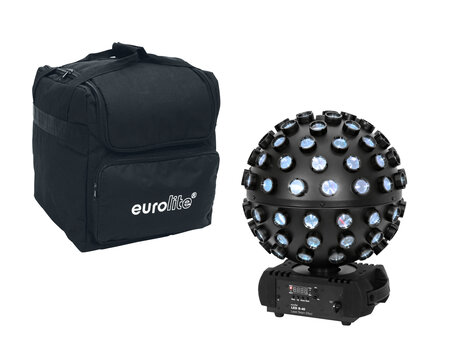

EUROLITE LED B-40 Laser Beam Effect
LED beam effect with RGBW color mixing and RG laser
- 2 laser diodes project hundreds of red and green laser beams
- 5 powerful LEDs 8 W high-power 4in1 QCL RGBW
3 segments separate controlling - Laser; multi beam effect; Strobe effect
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer - 7 integrated show programs
- Rotation speed stepless; color blend stepless; Dimmer electronic
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control
- The device is cooled by passive convection cooling
- With Mounting bracket
- Monochrome 4 digit 7-segment LED display
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
Package contents
- 1 x light effect, 1 x power cord, 1 x omega bracket, 1 x user manual, 1 x remote control, 4 x screw, 4 x washer
EUROLITE SB-10 Soft Bag
Black soft bag with divider, 330 x 330 x 355 mm
- Practical transport bag offers enough space for several lighting effects and accessories
- With divider
- With Outside pocket
- High-quality workmanship with nylon , black, water repellent
- Interior with foam padding
- 2 Rugged carrying handles
Weight:
4,64 kg
EUROLITE LED B-40 Laser Beam Effect
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
65 W
IP classification:
IP20
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
1 x IEC connector (F) mounting version
Fuse:
5 x 20 mm, T 1 A Fuse replaceable
Lamp type:
LED lamp
LED:
5 x 8 W high-power 4in1 QCL RGBW
Flash rate:
0 - 20 Hz
Laser class:
2M
Laser color:
R/G
Laser module:
Green (G) 40 mW 532nm
Red (R) 100 mW 650nm
DMX channels:
3; 10; 22
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control
Preprogrammed in:
Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
Monochrome 4 digit 7-segment LED display
Dimensions:
Width: 31 cm
Depth: 31 cm
Height: 39 cm
Weight:
4,20 kg
Noise classification:
Class 2 (slight noise)
EUROLITE SB-10 Soft Bag
Maximum load:
25 kg
Carrying handle:
2 pc/pcs
Material:
Nylon
Color:
Black, water repellent
Dimensions:
Width: 33 cm
Depth: 37 cm
Height: 33 cm
Weight:
440 g
