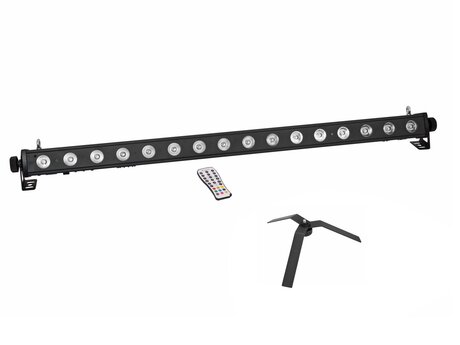

EUROLITE LED PIX-16 QCL Bar
LED light effect bar with 16 x 4 W RGBW LED (4in1), incl. IR remote control
- 16 powerful LEDs 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
- Strobe effect
- 21 integrated show programs
- Direct color selection for 15 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control
- Preprogrammed in Light´J; Light Captain
- Flicker-free
- With a beam angle of 15°
- With Mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
Package contents
- 1 x bar, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 2 x mounting bracket, 2 x screw, 2 x washer
EUROLITE FS-4 Floorstand, Steel, black
Floor stand for spotlights
- Suitable for spotlights and bars
Package contents
- 1 x stand, 1 x knurled screw
Weight:
3,14 kg
EUROLITE LED PIX-16 QCL Bar
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
70 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
P-Con (gray), mounting version
Fuse:
F 1 A Fuse replaceable
Lamp type:
LED lamp
LED:
16 x 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
DMX channels:
3; 4; 11; 21-1; 21-2; 64
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control
Preprogrammed in:
Light´J; Light Captain
Beam angle:
15°
Beam angle (1/2 peak):
15°
Beam angle (1/10 peak):
30°
Housing color:
Black
Attachment system:
2x Mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Length: 1,08 m
Width: 6,5 cm
Height: 8,5 cm
Weight:
2,39 kg
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
EUROLITE FS-4 Floorstand, Steel, black
Maximum carrying capacity:
15 kg
Attachment system:
M8 thread
Type (general stands):
Other stands
Material:
Steel (powder-coated), 3 mm
Transport dimensions:
21,5 cm x 2,5 cm x 3 cm
Dimensions:
Length: 31 cm
Width: 27 cm
Height: 8,5 cm
Weight:
370 g
