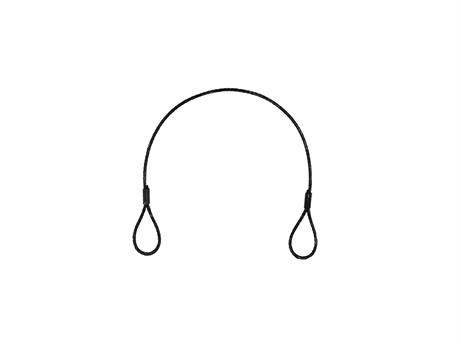

EUROLITE Steel Rope (SC) 400x3mm black without quick link
Steel rope with loops, grouted without grummet thimbles
- With steel core
- Stopping rope for general lifting purposes
- Rope with loop
EUROLITE Quick Link Type A-50
Quick link
- Complies with DIN 56927:2009-03
- For further information about this product, please refer to the Data Sheet under "Downloads"
Weight:
30 g
EUROLITE Steel Rope (SC) 400x3mm black without quick link
Maximum load WLL (5-fold):
100 kg
Design of the core:
6 x 19 WSC
Nominal tensile strenght of rope:
1770 N/mm²
Wire surface:
Zinc-plated
Color:
Black
Temperature range:
-40° C - +100° C
Dimensions:
Length: 40 cm
Diameter: Ø 3 mm
Weight:
20 g
EUROLITE Quick Link Type A-50
Maximum load WLL (10-fold):
50 kg
Standard:
DIN 56927:2009-03,
Shape:
A - small opening
Material:
Steel, zinc-plated
Opening:
0-5 mm
Dimensions:
Length: 2,90 cm
Width: 3,50 cm
Depth: 1,90 cm
Diameter: Ø 3 mm
Weight:
10 g
