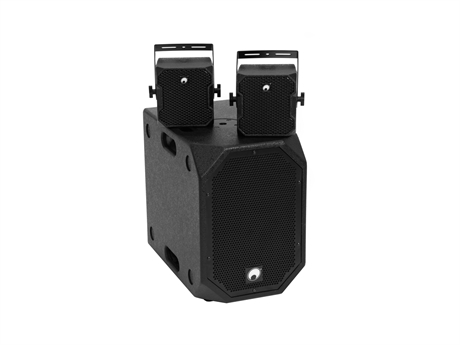

BOB-10A Subwoofer active including 2 x 4" satellite speakers BOB-4
OMNITRONIC BOB-10A Subwoofer active black
10" subwoofer with DSP and Bluetooth for the BOB series
- 10" bassreflex subwoofer with DSP and 900 watts RMS power
- Flexibly extendable with BOB-4 satellites for 2.1, 4.1 and 8.1 configurations
- DSP-controlled class D amplifier (300 W + 2 x 300 W)
- Signal inputs via combo jacks (XLR/6.3 mm jack) and RCA
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Digital signal processor
- Control via Bluetooth
- For application areas such as: Mobile djs/entertainer; Trade fair and shop fitting; Installation; home entertainment; restaurants, bars and hotels; product presentations and lectures
- 4 Rugged carrying handles
- DSP presets: FLAT; DJ; LIVE; SPEECH
Package contents
- 1 x bass, 1 x user manual, 1 x power cord, 2 x speaker cable, 4 x foot, 4 x screw, 1 x declaration of conformity
OMNITRONIC BOB-4 Top 16 Ohm black 2x
2 x 4" satellite speakers with bracket for the BOB series
- 16-ohm speaker pair with 4" full-range speaker
- For use with BOB-10A subwoofers for 2.1, 4.1 and 8.1 configurations
- Optional stand adaptor required for stand mounting
- Extension U-bracket and cable available for connecting 2 satellite speakers
- With Mounting bracket
- Black metal grille with acoustic foam
- 2 pieces per set
Package contents
- 2 x top, 4 x knurled screw, 2 x mounting bracket, 2 x plug (male)
Weight:
21,50 kg
OMNITRONIC BOB-10A Subwoofer active black
Power supply:
230 V AC, 50 Hz
Power consumption:
1060 W
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:
Rated: 1x 300W RMS LF
Rated: 2x 300W RMS HF
Frequency range:
45 - 250 Hz
Sensitivity:
100 dB
Max. SPL:
125 dB
DSP:
Digital signal processor
DSP presets:
FLAT; DJ; LIVE; SPEECH
Control:
Bluetooth
Attachment system:
2x M20 thread
Circuitry:
Class D
Control elements:
Phase reversal switch
Controls:
Softstart; short-circuit; limiter; Overvoltage; overheat; limiter
Status LED:
Signal, power, limit, fault, DSP presets
Connections:
Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: speaker via 2 x speaker built-in socket (F)
Output: line via 2 x 3-pin XLR
Input channels:
1 x stereo via Combination socket or RCA or Bluetooth, channel control via Rotary dial
Speaker:
1 x woofer (10") approx. 25 cm
Voice coil lows (2") approx. 5 cm
Type of speaker:
Subwoofer
Type of construction:
Vented
Carrying handle:
4 pc/pcs
Material:
MDF (Medium-density fibreboard), 15 mm
Color:
Black, textured coating
Dimensions:
Width: 30 cm
Depth: 47 cm
Height: 43 cm
Weight:
17,50 kg
OMNITRONIC BOB-4 Top 16 Ohm black 2x
Power:
Program: 150W
Rated: 75W RMS
Frequency range:
150 - 16000 Hz
Sensitivity:
90 dB (1W/1m)
Max. SPL:
109 dB
Impedance:
16 ohms
Attachment system:
Mounting bracket
Connections:
Input: speaker via 1 x screw plug-in terminal
Input: speaker via 1 x speaker built-in socket (F)
Speaker:
1 x compression tweeter highs (4") approx. 10 cm
Basket material: Steel
Conematerial: Cardboard/paper
1 x Voice coil compression tweeter highs (1") approx. 2.5 cm
Material:
ABS Acrylonitrile butadiene styrene
Color:
Black, textured coating, painted
Dimensions:
Width: 15 cm
Depth: 16 cm
Height: 15,8 cm
Weight:
4,00 kg
