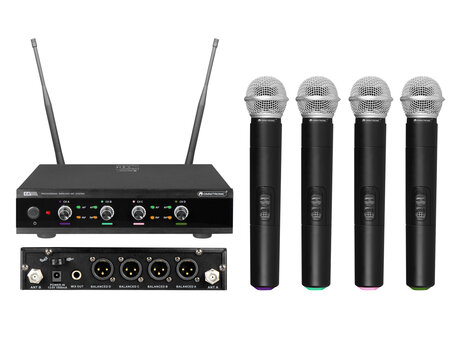

License-free 4-channel wireless microphone system
- 4-channel receiver and 4 hand-held microphones with UHF PLL technology
- Parallel operation of up to 12 transmission channels is possible without any interference
- Easy handling
- 4 separate channels with volume controls and LEDs for carrier signal and audio signal
- Balanced XLR output per channel
- 6.3 mm jack for mixed signal output
- Microphones with color indication
- UHF 518 - 548 MHz License-free and approved in large parts of Europe
- Operating range up to 60m with line-of-sight
Receiver
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
Microphone
Package contents
- 1 x receiver, 2 x antenna, 1 x external mains adapter, 4 x microphone, 1 x jack cable, 3 x mounting bracket, 4 x foot, 13 x screw, 1 x user manual, 1 x declaration of conformity
Type:
Wireless set
Frequency band:
UHF 518 - 548 MHz
Carrier frequency:
518,7; 520,9; 523,1; 525,3
Frequency selection:
4 fixed frequencies
Modulation:
FM
Range:
Range up to 60m with line-of-sight
Weight:
2,16 kg
Receiver
Power supply:
100-240 V AC, 50/60 Hz
13,5 V DC 150 mA
Power consumption:
6 W
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:
4
Frequency range:
20 - 20000 Hz
S/N ratio:
>96 dB
THD:
