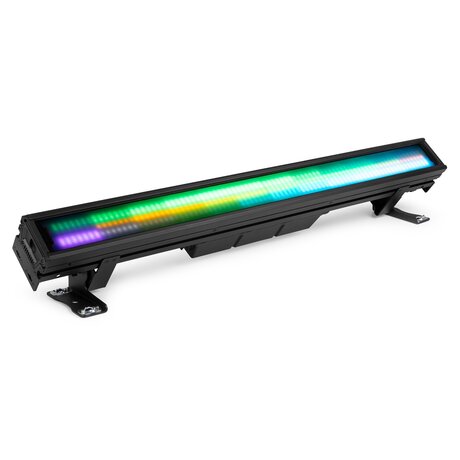

The LCB400IP is a robust aluminium LED bar specifically designed for indoor and outdoor environments. Utilizing advanced LED cutting-edge technology with RGB, Cool White and Amber SMD LEDs, the LCB400IP produces remarkable effects, making it versatile for a range of applications. It's ideal for uplighting large venues and buildings or illuminating stages at live events. The fixture features a convection-cooled cast aluminium housing with watertight internal gaskets and weather-resistant power and DMX cable in/out connections. Quick Lock brackets are included for easy setup.
IP65 LED Bar
504x SMD RGB LEDs
168x SMD Cool White LEDs
84x SMD Amber LEDs
Separate controllable sections (RGB 36, CW 24 and Amber 12 sections)
Weatherproof IP65 for indoor/outdoor use
Pre-programmed shows and adjustable speed
Electronic frost filter
Strobe effect
DMX and Stand-alone mode
Master/Slave function
Control panel with OLED display
Aluminium housing with convection cooling
Waterproof in/output connectors for DMX and power
Brand beamZ Pro
Product colour Black
Light source Single colour LED, 3-in-1 LED
Colours Red, Green, Blue, Amber, Cool White
LED power 0.5W, 1W
Quantity of LEDs 504 RGB + 168 Cool White + 84 Amber
Beam angle 93°
Field angle 127°
Illuminance 19.772 lx @ 0.5m
Flash rate per second 1 - 25Hz
Modes Automatic programs, DMX, Master/Slave
RDM Yes
DMX channels 4, 6, 7, 12, 15, 35, 45, 75, 159, PX6 (RGB) 19 channels , PX6 All 31 channels, PX12 (RGB) 37 channels, PX12 All 61 channels, PX36 (RGB) 109 channels, PX All 145 channels
DMX connection 3-pin XLR
IP rating IP65
Cooling Convection
Display oLed
Power plug P-Con TR1
Power consumption 2.660 - 1.259A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 1040 x 140 x 115mm
Weight (kg) 9.8
Included accessories Mounting bracket, Power cable
