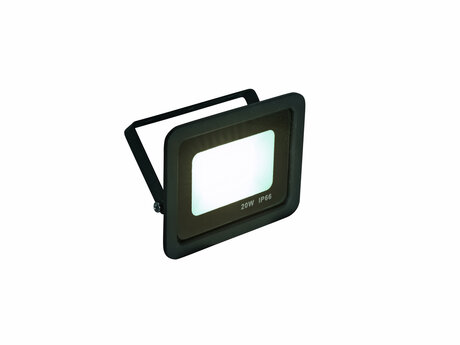

Flat outdoor floodlight (IP66) with white SMD LEDs
- 30 powerful LEDs SMD 2835 cold white (CW)
- The device is cooled by passive convection cooling
- Control via plug and play
- With Mounting bracket
- Suitable for outdoor use IP66
- Various versions available
- Silent operation
Package contents
- 1 x device, 1 x user manual
Power supply:
230 V AC, 50 Hz
Power consumption:
22 W
IP classification:
IP66
Protection class:
Protection class I
Power connection:
Fixed power supply cord with safety plug
Cable construction:
3 x 1,0 mm² H05RN-F
Cable length:
Approx. 1 m
Lamp type:
LED lamp
LED:
30 x SMD 2835 cold white (CW)
Color temperature:
6000K
Cooling:
Passive convection cooling
Control:
Plug and play
Beam angle (1/2 peak):
70°
Beam angle (1/10 peak):
120°
Luminous flux:
1756 lm
Housing color:
Black matte
Attachment system:
Mounting bracket
Material:
Aluminum casting
Dimensions:
Width: 13 cm
Depth: 2,3 cm
Height: 10 cm
Weight:
360 g
Noise classification:
Class 0 (no noise at all)
Energy efficiency class (A - G):
F
Mounting bracket
Diameter mounting holes:
1 x Ø8mm; 2 x Ø6mm
Material:
Metal, 1,5 mm
