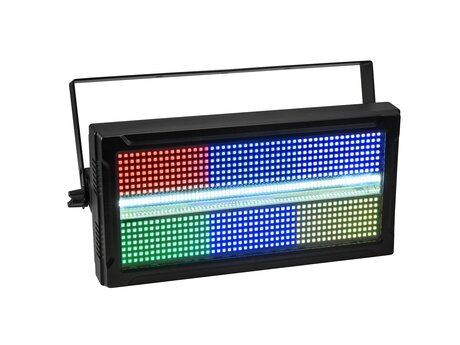

3in1 LED effect light with RGB color mixing and DMX
- 140 powerful LEDs 3 W SMD 3535 cold white (CW)
- 672 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
- Strobe effect; Wash effect; Blinder effect
- 37 integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Master/slave function
- Flicker-free
- With panning and tilting mounting bracket for ceiling or wall installation in most varying angles
- LCD display
- Dimmer curves adjustable; color blend stepless; Dimmer electronic
- Preprogrammed in Light Captain
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
400 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version (provided)
Power output:
1 x P-Con (gray), mounting version
Fuse:
T 3 A Fuse replaceable
LED:
140 x 3 W SMD 3535 cold white (CW)
672 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Flash rate:
1 - 30 Hz
DMX channels:
6; 17; 20; 21; 298; 310
DMX input:
5-pin XLR (M) mounting version
3-pin XLR (M) mounting version
DMX output:
1 x 5-pin XLR (F) mounting version
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Master/slave function
Preprogrammed in:
Light Captain
Beam angle (1/2 peak):
120°
Attachment system:
Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
Display type:
LCD display
Dimensions:
Width: 50,0 cm
Depth: 14,5 cm
Height: 27,5 cm
Weight:
7,65 kg
