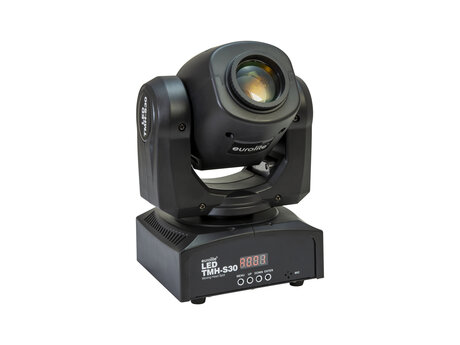

Compact Moving Head Spot with 30 W LED, gobos and color wheel
- 1 powerful LED 30 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN and 170° TILT
- Exact positioning (16 bit resolution)
- Color wheel; Focus manual; gobo wheel with rotating gobos
- Beam effect; Strobe effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for easy gobo replacement
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional)
- Flicker-free
- With a beam angle of 8°
- 4 digit 7-segment LED display
- Dimmer electronic
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
- Rubber feet
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
45 W
IP classification:
IP20
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Fuse:
T 1 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 30 W COB (chip-on-board) cold white (CW)
Color temperature:
8000K
Max. TILT movement:
170° Exact positioning (16 bit resolution)
Max. PAN movement:
540° Exact positioning (16 bit resolution)
Equipment:
Color wheel; Focus manual; gobo wheel with rotating gobos
Color generation:
Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 14mm
Image diameter 10mm
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
DMX channels:
10; 12
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional)
Preprogrammed in:
Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
8°
Beam angle (1/2 peak):
8°
Illuminance in Lux (lx):
Cold white (CW) 1m: 14450 lx, 3m: 1574 lx, 6m: 377 lx
Housing color:
Black
Display type:
4 digit 7-segment LED display
Transport aid:
Rubber feet
Dimensions:
Width: 17,0 cm
Depth: 15,0 cm
Height: 24,0 cm
Weight:
3,03 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
