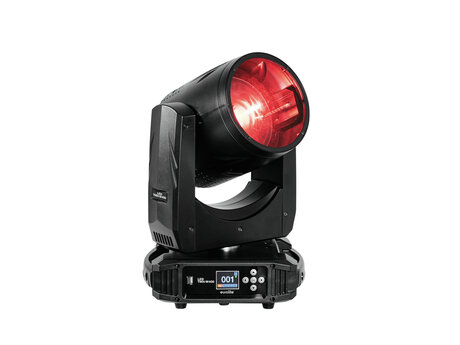

Bright washlight with 400 W COB LED and motorized zoom
- 1 powerful LED 400 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
- Positioning within 540° PAN and 230° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Zoom motor-driven
- Color blend stepless; Dimmer electronic
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 9° - 48°
- Very high color rendering index (CRI)
- Multicolor LCD display
- Preprogrammed in Light Captain; Light´J
- Mains input and output for power linking up to 4 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
360 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 5 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 400 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
Max. TILT movement:
230° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:
540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:
1 - 25 Hz
Equipment:
Zoom motor-driven
DMX channels:
13
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light Captain; Light´J
Beam angle:
9° - 48°
Beam angle (1/2 peak):
9 - 25°
Beam angle (1/10 peak):
16 - 48°
Color rendering index (CRI):
92 Ra
Illuminance in Lux (lx):
Narrow red (R) 1m: 14250 lx, 3m: 2003 lx, 6m: 470 lx
Narrow green (G) 1m: 36558 lx, 3m: 4533 lx, 6m: 1085 lx
Narrow blue (B) 1m: 4869 lx, 3m: 959 lx, 6m: 235 lx
Narrow warm white (WW) 1m: 33844 lx, 3m: 3508 lx, 6m: 837 lx
Narrow all 1m: 75609 lx, 3m: 9660 lx, 6m: 2293 lx
Wide red (R) 1m: 2821 lx, 3m: 359 lx, 6m: 97 lx
Wide green (G) 1m: 6107 lx, 3m: 809 lx, 6m: 227 lx
Wide blue (B) 1m: 1410 lx, 3m: 188 lx, 6m: 53 lx
Wide warm white (WW) 1m: 5425 lx, 3m: 706 lx, 6m: 195 lx
Wide all 1m: 13817 lx, 3m: 1798 lx, 6m: 495 lx
Housing color:
Black
Display type:
Multicolor LCD display
Dimensions:
Width: 30,0 cm
Depth: 23,0 cm
Height: 45,0 cm
Weight:
10,20 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
