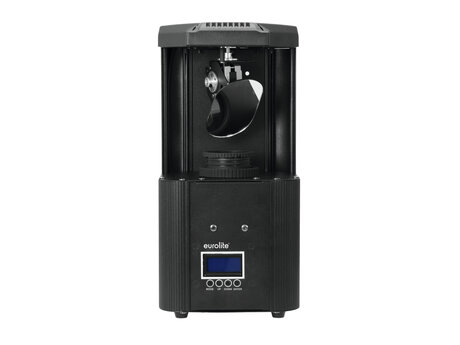

Handy scanner with 30 W LED, rotating gobo and color wheel
- Compact design
- 1 powerful LED 30 W COB (chip-on-board)
- Positioning within PAN and TILT
- Color wheel; gobo wheel with rotating gobos; Focus manual
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
gobos changeable - Slot-in gobo system for easy gobo replacement
- Shake effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 9°
- LCD display
- Dimmer electronic
- Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
- Rubber feet
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x mounting bracket, 2 x screw
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
65 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Device fuse:
5 x 20 mm, T 1 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 30 W COB (chip-on-board)
Equipment:
Color wheel; gobo wheel with rotating gobos; Focus manual
Color generation:
Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 14mm
Image diameter 10mm
Gobos changeable
Slot-in gobo system for easy gobo replacement
Shake effect
DMX channels:
10
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
9°
Beam angle (1/2 peak):
9°
Illuminance in Lux (lx):
Cold white (CW) 1m: 9123 lx, 3m: 955 lx, 6m: 149 lx
Housing color:
Black
Display type:
LCD display
Transport aid:
Rubber feet
Dimensions:
Width: 16,0 cm
Depth: 15,0 cm
Height: 33,0 cm
Weight:
3,16 kg
Noise classification:
Class 3 (clearly perceptible sounds)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
