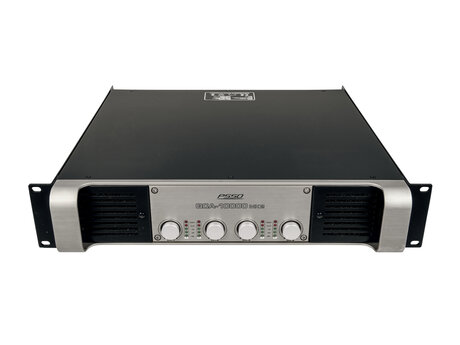

Class I multi-channel PA amplifier with SMPS, 4 x 2500 W RMS (2 ohms), 4 x 2100 W RMS (4 ohms)
- 4-channel PA amplifier with class I circuitry
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
- 3 operating modes can be selected (stereo, parallel or bridged)
- Level control per channel
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
- Built with NEUTRIK connector
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x amplifier, 1 x cover, 4 x foot, 1 x user manual
Power supply:
230 V AC, 50 Hz
Power consumption:
1150 W 1/8 power
Protection class:
Protection class I
Output power:
4 x 2500 W RMS (2 ohms)
4 x 2100 W RMS (4 ohms)
4 x 1300 W RMS (8 ohms)
2 x 5000 W RMS bridged (4 ohms)
2 x 4200 W RMS bridged (8 ohms)
Power connection:
Fixed power supply cord with safety plug
Cable length:
1,5 m
Frequency range:
20 - 20000 Hz
S/N ratio:
>80 dB
THD:
10 V/µs
Damping factor:
>800
Crosstalk:
>65 dB
Control elements:
Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
Controls:
Overheat; overload; short-circuit; softstart; DC voltage; VHF
Status LED:
Power, level meter, clip, protect
Connections:
Input: line via 4 x 3-pin XLR (F) mounting version
Output: line via 4 x 3-pin XLR (M) mounting version
Output: speaker via 4 x speaker built-in socket (F)
Input sensitivity:
0,775 V; 1,0 V; 1,4 V , switchable; 26 dB; 32 dB; 38 dB , switchable
Use of brands:
Built with NEUTRIK connector
Color:
Black
Housing design:
(19") 48.3 cm rack installation 2 U
Dimensions:
Width: 48,3 cm
Depth: 44,5 cm
Height: 8,9 cm
Weight:
13,90 kg
