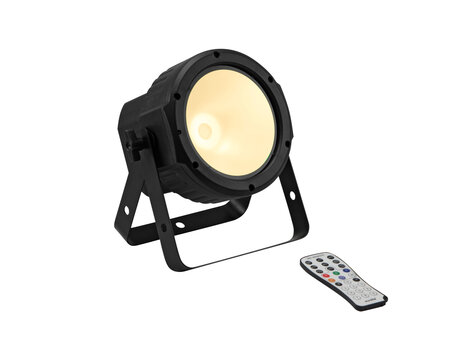

LED floor spot with 30 W COB LED in WW, incl. IR remote control
- DMX and power terminals intelligently designed for easy wiring
- 1 powerful LED 30 W COB (chip-on-board) warm white (WW)
- Dimmer electronic
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Master/slave function; IR remote control; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 18°
- Very high color rendering index (CRI)
- With double bracket
- 4 digit 7-segment LED display
- Preprogrammed in Light´J; Light Captain
- Strobe effect
- Mains input and output for power linking up to 8 units
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
25 W
IP classification:
IP20
Protection class:
Protection class II
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Power output:
Safety contact (F), mounting version
Device fuse:
T 1 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 30 W COB (chip-on-board) warm white (WW)
Color temperature:
3000K
Flash rate:
0 - 20 Hz
DMX channels:
1; 2; 4
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Master/slave function; IR remote control; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light´J; Light Captain
Beam angle:
18°
Beam angle (1/2 peak):
18°
Beam angle (1/10 peak):
65°
Color rendering index (CRI):
97 Ra
Housing color:
Black
Attachment system:
Double bracket
Display type:
4 digit 7-segment LED display
Material:
Plastic
Dimensions:
Width: 21,5 cm
Depth: 12,7 cm
Height: 22,85 cm
Weight:
1,10 kg
Noise classification:
Class 3 (clearly perceptible sounds)
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 0,75 mm² H05VV-F
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
1 x Ø11mm; 2 x Ø10mm
Material:
Metal, 1,5 mm
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
